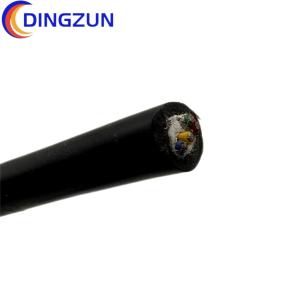

    Buy cheap SIHF GLP silicone Insulation Tinned Copper 2 Conductor Power Cable PVC Sheath from wholesalers

    Buy cheap SIHF GLP silicone Insulation Tinned Copper 2 Conductor Power Cable PVC Sheath from wholesalers
    • Buy cheap SIHF GLP silicone Insulation Tinned Copper 2 Conductor Power Cable PVC Sheath from wholesalers
    • Buy cheap SIHF GLP silicone Insulation Tinned Copper 2 Conductor Power Cable PVC Sheath from wholesalers
    • Buy cheap SIHF GLP silicone Insulation Tinned Copper 2 Conductor Power Cable PVC Sheath from wholesalers
    • Buy cheap SIHF GLP silicone Insulation Tinned Copper 2 Conductor Power Cable PVC Sheath from wholesalers

    SIHF GLP silicone Insulation Tinned Copper 2 Conductor Power Cable PVC Sheath

    Ask Lasest Price
    Brand Name : Dingzun
    Model Number : Z-79b
    Certification : UL,CE,ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 3000M/DAY
    Delivery Time : 15DAYS
    • Product Details
    • Company Profile

    SIHF GLP silicone Insulation Tinned Copper 2 Conductor Power Cable PVC Sheath

    Z-79B

    Details:SIHF GLP

    Description: 2 CONDUCTOR POWER CABLE

    Details:
    Conductor: tinned copper
    Section area: 1mm2
    Construction: 81/0.12
    Pairs: 1
    Twisted: required
    Filler: Al Foil
    Shield: Al foil
    Binder: Poly tape
    Overall shield: tinned copper wire braided
    Coverage: more than 90%
    Jacket silicone rubber
    O.D.: 7.6mm
    Rated Temp: 200degree
    Rated Voltage: 300v/500v
    Type multi core

    PRODUCT SPECIFICATION

    AWGNo. of CoresConductor cross section
    mm^2
    Nominal OD
    mm
    Copper weight
    kg/km
    Gross
    Weight
    kg/km
    1820.757.214.488
    1830.757.621.699
    1840.758.129121
    1850.759.236147
    1860.759.943169
    1870.759.950178
    17217.61998
    1731829119
    17418.838139
    17519.748167
    176110.458185
    177110.467194
    1621.58.329126
    1631.58.743143
    1641.59.658170
    1651.510.472198
    1661.511.486245
    1671.511.4101256
    1681.512.7116315
    16101.514144370
    16121.514.5173408
    16141.515.6202471
    16161.517231541
    16181.517.8260599
    16201.518.3288630
    16241.520.4346760
    1422.59.748165
    1432.510.272238
    1442.511.596268
    1452.512.7120315
    1462.513.7144370
    1472.513.7168385
    14122.517.6288608
    122411.577255
    123412.2115299
    124413.4154365
    125415.1192455
    126416.4230525
    127416.4269556
    102612.9115326
    103613.7173401
    104614.8230485
    105616.8288602
    106618.2346701
    107618.2403736
    821017.3192543
    831018.4288652
    841020.6384825
    851022.5480987
    621620.2308748
    631621.5462909
    641623.46161183
    651626.27701393
    422523.84801046
    4325267201347
    442528.39601678
    223527.26721378
    23352910081846
    243532.313442240
    125031.49601869
    135033.514402384
    145037.219202702
    2/027035.313442482
    2/037038.320163314
    2/047042.526884074
    3/029041.418243380
    3/039044.827364299
    3/049049.836485339
    4/0312048.834655277
    4/0412054.146206571

    2 CONDUCTOR POWER CABLE is a custom cable, so you may find in spite of a power application, we still use shield for this cable. For 1pair FEP insulation, we used Al foil wrapping and overall tinned copper braid in order to make sure this cable will not be interference from outer ambient.
    FEP insulation and silicone Jacket combination is commonly used for those high end clients, who requires high temperature working environment and still keep the flexibility of the whole cable.
